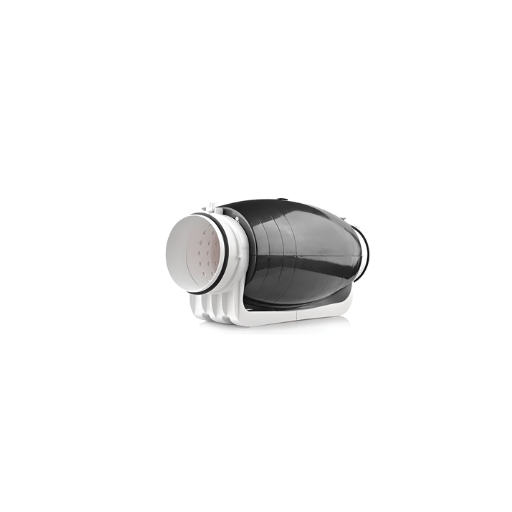

Silent MEC 150mm Mixed Flow 2 Speed Fan
A 150mm silent series inline mixed flow duct fan with 2-speed operation, built for quieter running than a standard inline fan. It mounts in-line within the ductwork to extract air through bathroom, kitchen and general ventilation systems while keeping noise to a minimum.
Key Features
- Duct size: 150mm
- 2-speed operation
- Silent series – reduced operating noise
- Mixed flow impeller design
- In-line duct mounting
| Product Code | Size (mm) | Voltage/ Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Airflow (CMH) | Air Pressure (Pa) | Noise (dBA @ 3m) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| FANMFS150 | 150 | 220~240/50 | 0.25 | 50 | 2550 | 530 | 300 | 37 | 4 |
| 0.2 | 43 | 1850 | 410 | 240 | 29 |

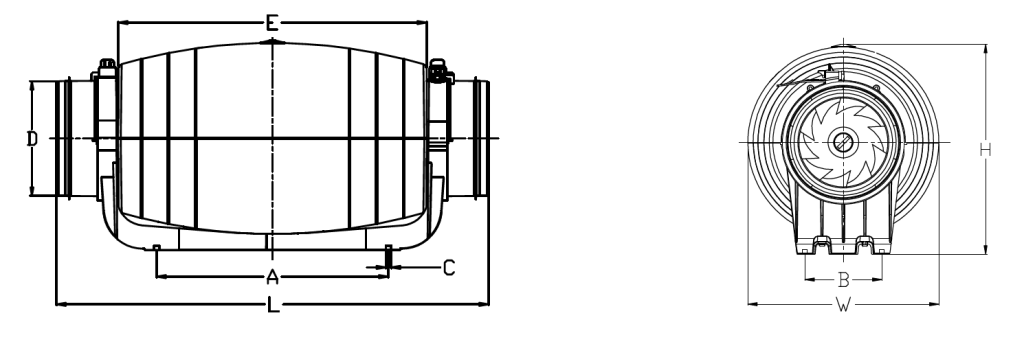

| Product Code | A | B | C | ØD | E | L | W | H |
|---|---|---|---|---|---|---|---|---|
| FANMFS150 | 251 | 95 | 4-Ø5.3 | 149/158 | 352 | 488 | 221 | 244 |
