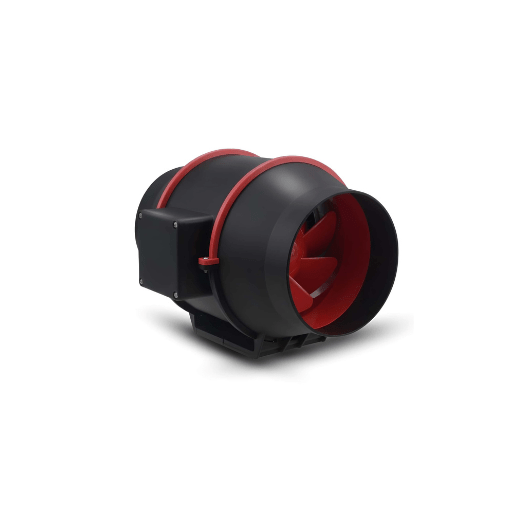

150mm EC MEC Mixed Flow Rotary Speed Fan
The 150mm EC MEC Mixed Flow Fan features an energy-efficient EC motor and mixed flow impeller for high static pressure and strong airflow. Ideal for bathrooms, kitchens, offices, and longer duct runs in residential and commercial installations. The rotary controller allows precise airflow adjustment from 0–100%.
Pressure | Air Flow | Speed | Voltage | Current | Power | Noise | ||
mmH2O | Pa | m3/h | l/s | rpm | V | A | W | dB-A @ 3m |
45.9 | 450.0 | 0.0 | 0.0 | 3523 | 109 | 0.98 | 0.98 | 0 |
41.5 | 406.4 | 48 | 13.73 | 3495 | 109 | 0.99 | 0.99 | 17.2 |
38.9 | 381.2 | 78 | 21.38 | 3501 | 109 | 0.99 | 0.99 | 19.9 |
27.7 | 271.6 | 222 | 61.16 | 3666 | 109 | 0.99 | 0.99 | 26.9 |
24.8 | 242.6 | 372 | 103.55 | 3180 | 109 | 0.99 | 0.98 | 30.2 |
19.6 | 192.1 | 468 | 129.08 | 2978 | 109 | 1 | 0.98 | 31.6 |
16.8 | 165.1 | 510 | 141.63 | 2923 | 109 | 0.99 | 0.97 | 32.1 |
12.3 | 120.6 | 570 | 157.63 | 2883 | 109 | 0.97 | 0.97 | 32.8 |
5.9 | 58.2 | 630 | 174.62 | 2860 | 109 | 0.98 | 0.97 | 33.4 |
0.0 | 0.0 | 684 | 189.72 | 2881 | 109 | 0.98 | 0.97 | 34 |
