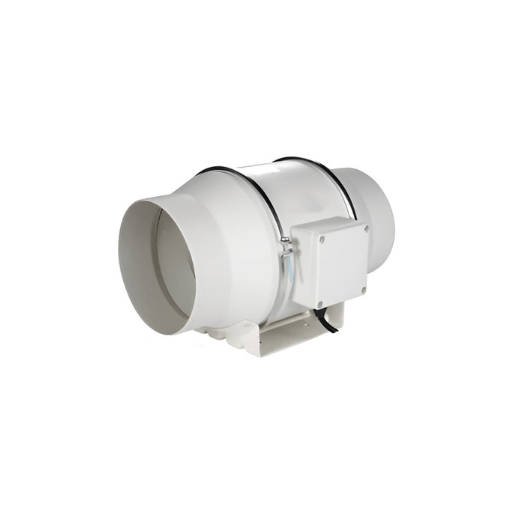

150mm Mixed Airflow Inline Duct Fan
A 150mm inline mixed flow duct fan with 2-speed operation, used to extract air through ducted bathroom, kitchen and general ventilation systems. Its mixed flow impeller combines strong airflow with reasonable static pressure, and it mounts in-line within the ductwork rather than at the grille.
Key Features
- Duct size: 150mm
- 2-speed operation
- Mixed flow impeller design
- In-line duct mounting
- Suitable for bathroom, kitchen and general extraction ducting
| Product Code | Size(mm) | Voltage/Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Airflow (CMH) | Airflow (CFH) | Air Pressure (Pa) | Noise (dBA@3m) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| FANMF150 | 150 | 220~240/50 | 0.22 | 54 | 2550 | 530 | 313.6094675 | 300 | 46.7 | 2.6 |
| 0.19 | 44 | 1850 | 410 | 242.6035503 | 240 | 38.8 |

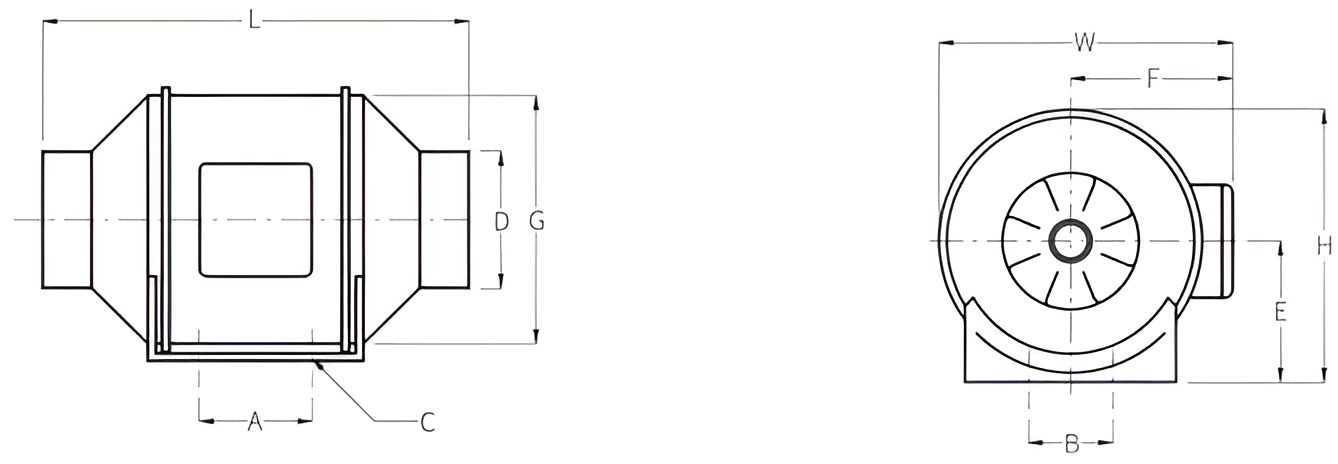

| Model | A | B | C | ØD | E | F | ØG | L | W | H |
|---|---|---|---|---|---|---|---|---|---|---|
| FANMF150 | 80 | 60 | 4-Ø4.5 | 147 | 99 | 127 | 187 | 313 | 227 | 208 |
