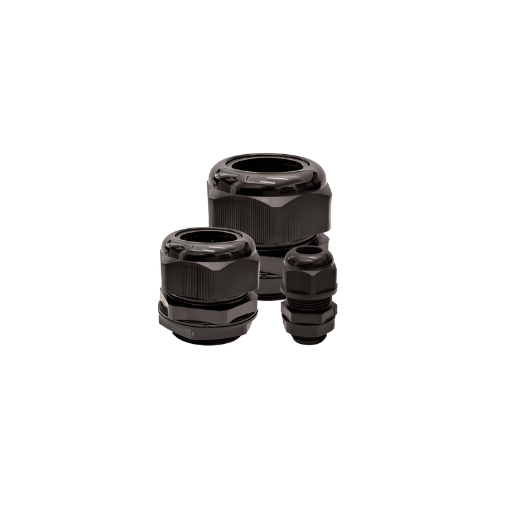

50mm Black Cable Gland
A 50mm black cable gland used to provide a secure, sealed cable entry into an enclosure, switchboard or junction box. The compression nut clamps down on the cable jacket to maintain a weatherproof seal and strain relief at the entry point.
Key Features
- Size: 50mm
- Colour: Black
- Compression-nut cable clamping
- Suitable for indoor and outdoor enclosures
| Material | Flammability | Color | Protection | Operation Temperature | Testing Standard | Remark |
|---|---|---|---|---|---|---|
| UL approved Polyamide | UL 94V-2 | Black | Made to comply with IP68 - 5 Bar | -40°C up to 100°C | Properties testing according to UL 514B | PG Series is equipped with cable gland body, seal and lock nut only |
| EPDM for seal insert | IP68 testing according to IEC60529 | |||||
| (Other NBR material is also available) | UL listed and meets VDE ratings |
| Product Code | Cable Range (mm) | Thread Diameter (mm) | Thread Lengt (mm) | Body SW (mm) | Lock Nut (mm) | Lock Nut H (mm) | Seal I.D (mm) | Packing (pcs/bag) |
|---|---|---|---|---|---|---|---|---|
| ECG50 | 29-38 | 50 | 18 | 60 | 60 | 9 | 38 | 10 |
