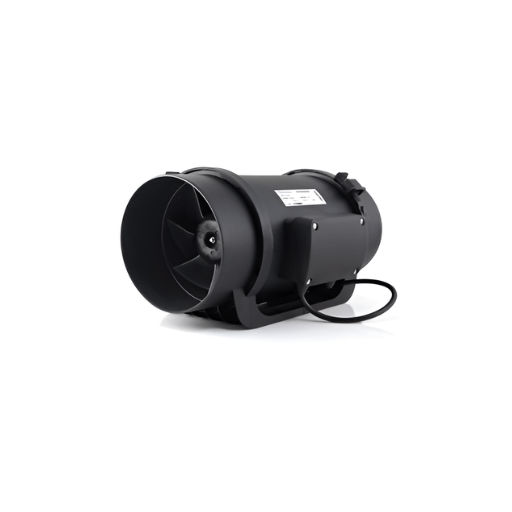

A 150mm Hi-Ec series inline duct fan built around a high-efficiency EC motor, used to extract air through ducted ventilation systems. The EC motor delivers strong airflow for lower power consumption than a standard AC motor fan, and mounts in-line within the ductwork.

Key Features

  • Duct size: 150mm
  • EC (electronically commutated) motor
  • High airflow efficiency
  • In-line duct mounting
  • Suitable for bathroom, kitchen and general extraction ducting

Product CodeVoltageCurrent (Amps)Power (W)Speed (RPM)AirflowAir Pressure (Pa)Net Weight (kgs)
m³/hm³/s
FANEC150100~2400.70
MAX 1.40
774300798221.75422
